Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: HongZe
  • Model Number: HZ7585
  • Material: Low-Carbon Iron Wire, Low-Carbon Iron Wire
  • Type: Welded Mesh
  • Application: Construction Wire Mesh
  • Hole Shape: Square
  • Aperture: 1/2" 3/4" 1" 2"
  • Wire Gauge: BWG12mm-BWG24mm
  • Surface treatment: Hot Dipped Galvanized PVCcoated
  • Feature: Durable
  • Packing: Waterproof Paper
  • Certificate: ISO9001:2008
  • Length: Customzied
  • Usage: Protecting Mesh
  • Width: 0.5-2m

Packaging & Delivery

Packaging Details Waterproof Paper and plastic film or According to customer's requirements
Delivery Time Within 15 days orAccording to customer's requirements

anping factory  hot dipped or electro galvanized pvc coated welded wire mesh



1.Material:low carbon steel wire,stainless steel wire



2.Processing: rust cleaning-spot welding-zinc plating-packing-loading container.



3.Property:corrosion resistance,aging resistance,sunshine resistance and weather resistance.





4.Surface treatments:



1.Hot-dip galvanized or electro galvanized



2.Pvc/PE coated with green,dark green,yellow or other colors.



  Thickness of Pvc coating:0.2-0.5mm



Application:Welded wire mesh panels is made of superior quality welded mesh,with flat    surface,firm structure.



 Be used extensively in building,food,agriculture,transportation and mining for all such purposes as poultry houses,egg baskets,runway enclosures,draining rack,fruit drying screen,fence.



5.Assortments:

1.Welded stainless steel wire mesh panels

2.Galvanized welded mesh panels

3.Hot-dip zinc plating welded mesh panels

4.Pvc coating welded mesh panels with green,black colors etc.

6.



Specification List of Welded Wire Mesh
OpeningWire Diameter<BWG>
In inchIn metric unit(mm)
1/4" x 1/4"6.4mm x 6.4mm22,23,24
3/8" x 3/8"10.6mm x 10.6mm19,20,21,22
1/2" x 1/2"12.7mm x 12.7mm16,17,18,19,20,21,22,23
5/8" x 5/8"16mm x 16mm18,19,20,21,
3/4" x 3/4"19.1mm x 19.1mm16,17,18,19,20,21
1" x 1/2"25.4mm x 12.7mm16,17,18,19,20,21
1-1/2" x 1-1/2"38mm x 38mm14,15,16,17,18,19
1" x 2"25.4mm x 50.8mm14,15,16
2" x 2"50.8mm x 50.8mm12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request



Galvanized Welded Wire Mesh
OpeningWire Diameter<BWG>
In inchIn metric unit(mm)
2" x 3"50mm x 75mm2.0mm,2.5mm,1.65mm
3" x 3"75mm x 756mm2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"50mm x 100mm2.11mm,2.5mm
4" x 4"100mm x 100mm2.0mm,2.5mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.





PVC Coated Welded Mesh:
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.

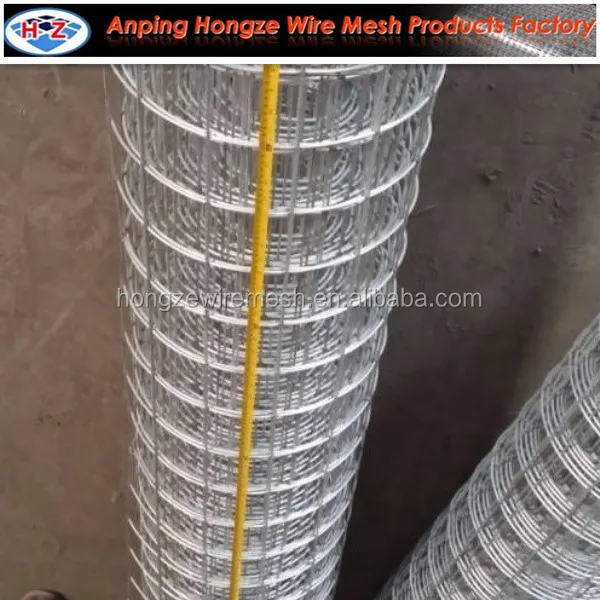

7.Pictures
